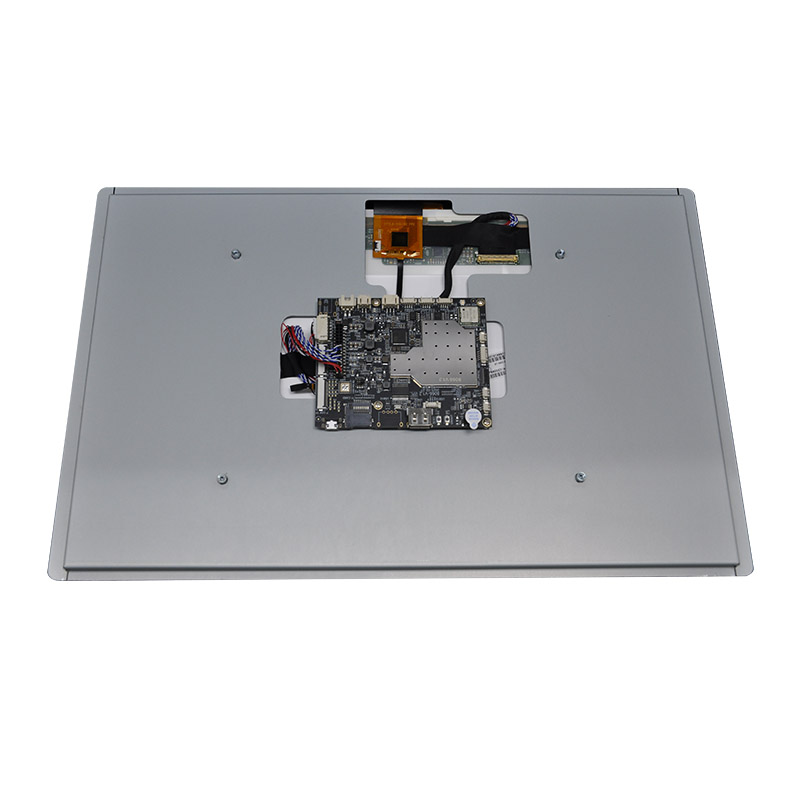

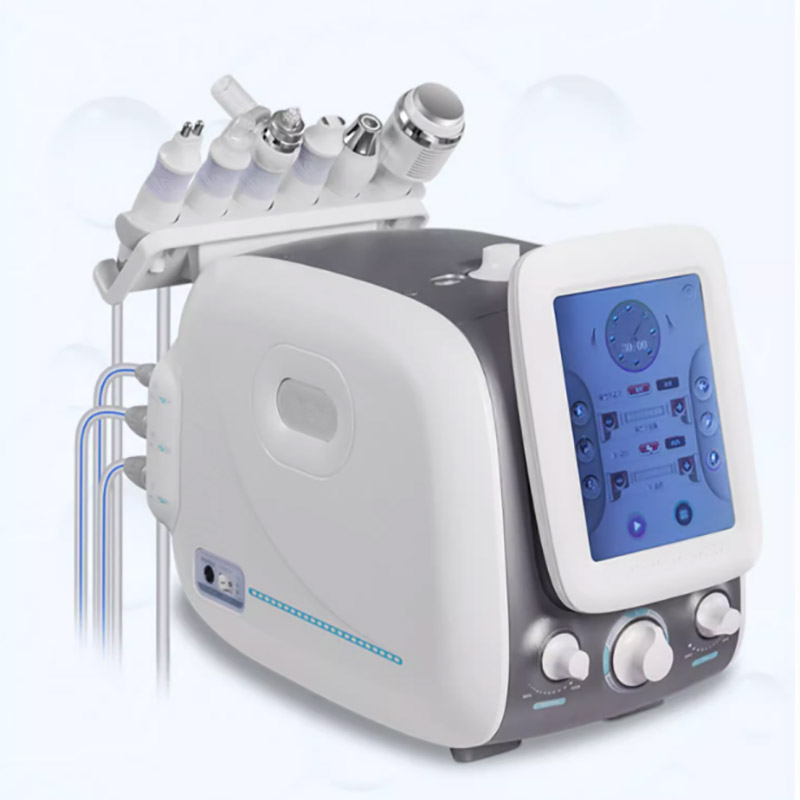

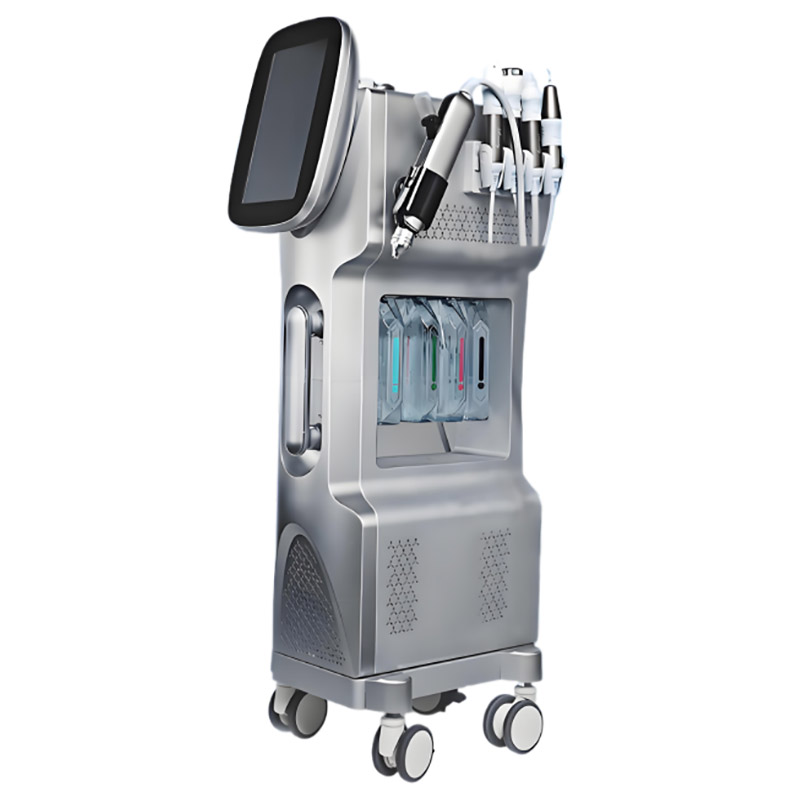

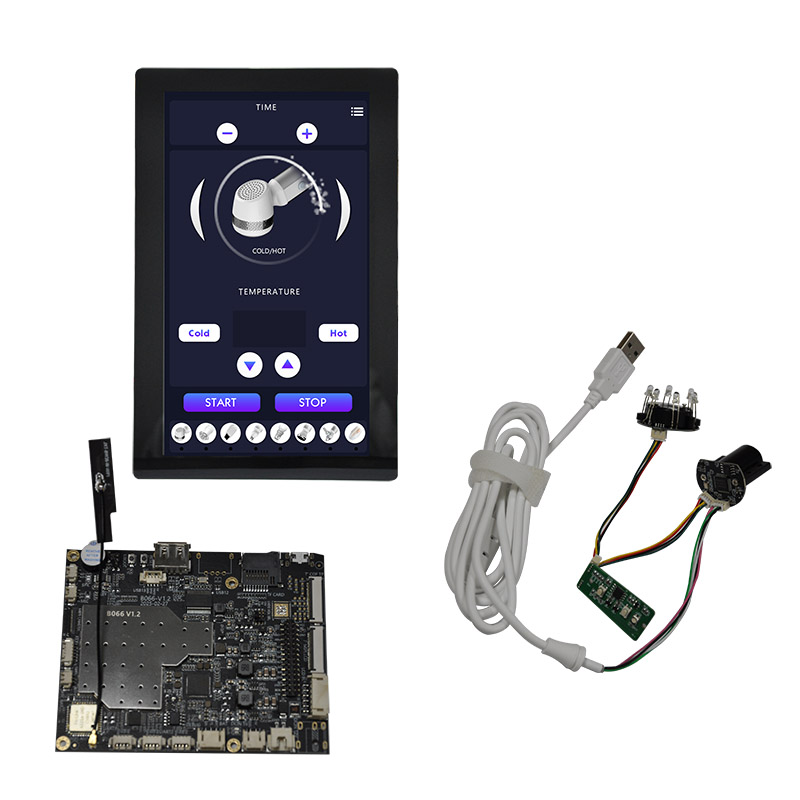

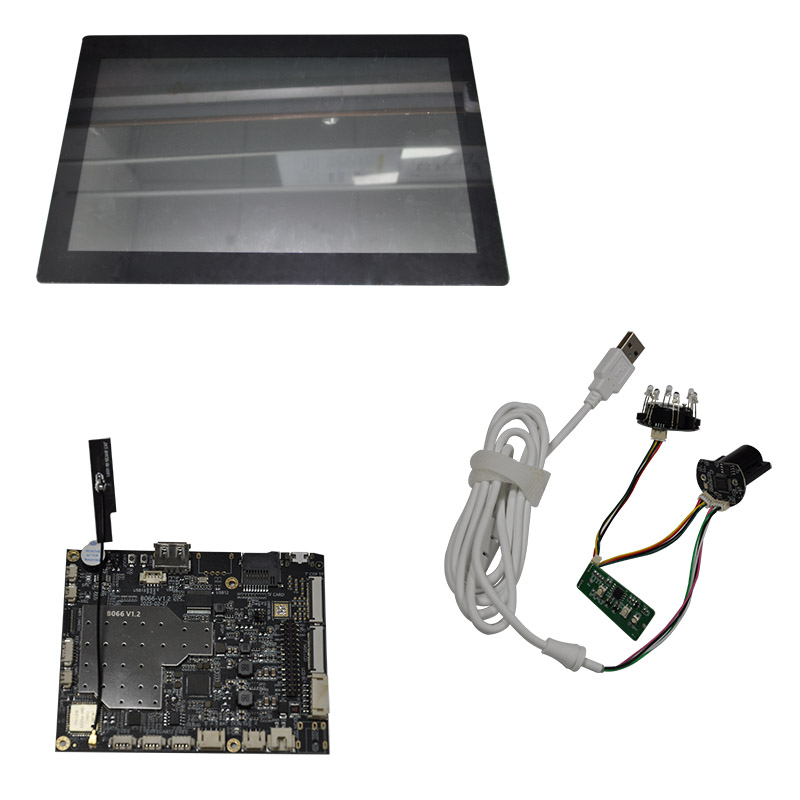

HT-7282A01 Android motherboard+module+15.6-inch LCD screenSmall bubble, skin comprehensive device, hair removal device system integrated skin and hair detection system solution development, providing Android motherboard, PCBA camera module, optional 7-inch LCD screen, 10.1-inch LCD screen, 12.1-inch LCD screen, 15.6-inch LCD screen and other complete software and hardware development.
Collect
产品编号 29
商品说明
商品参数

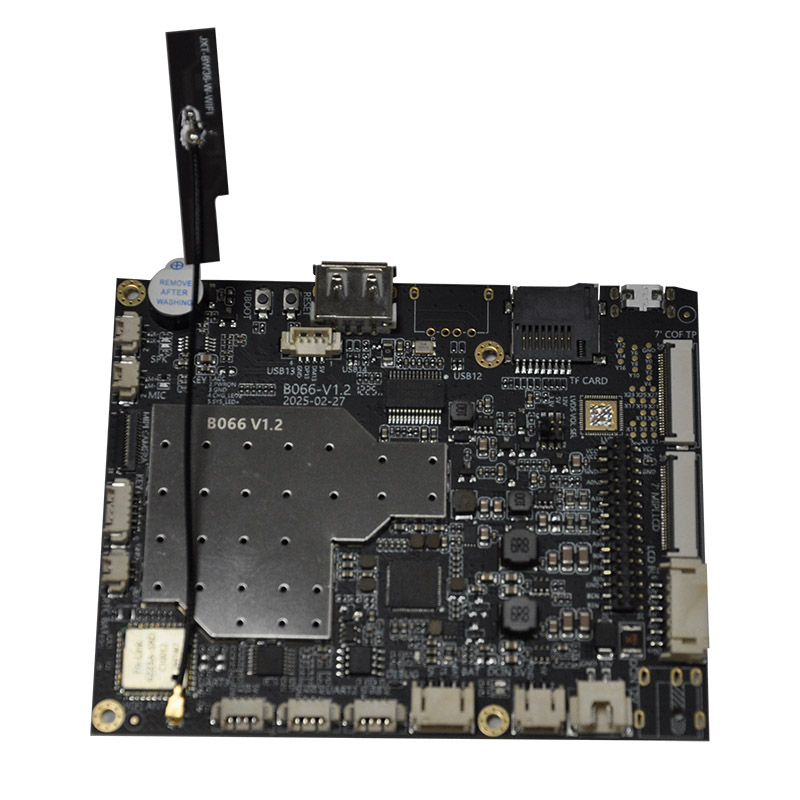

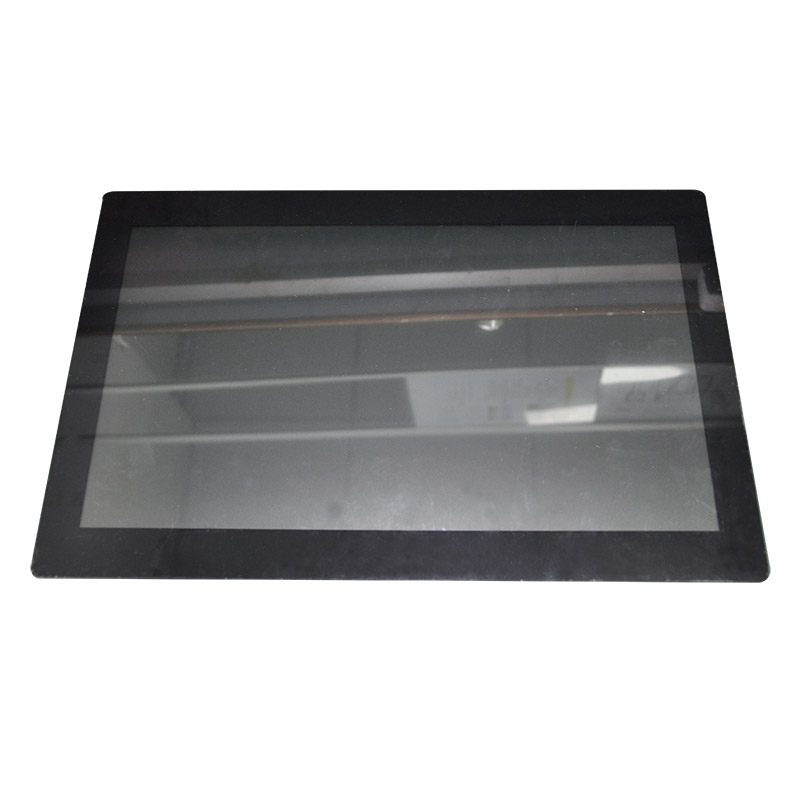

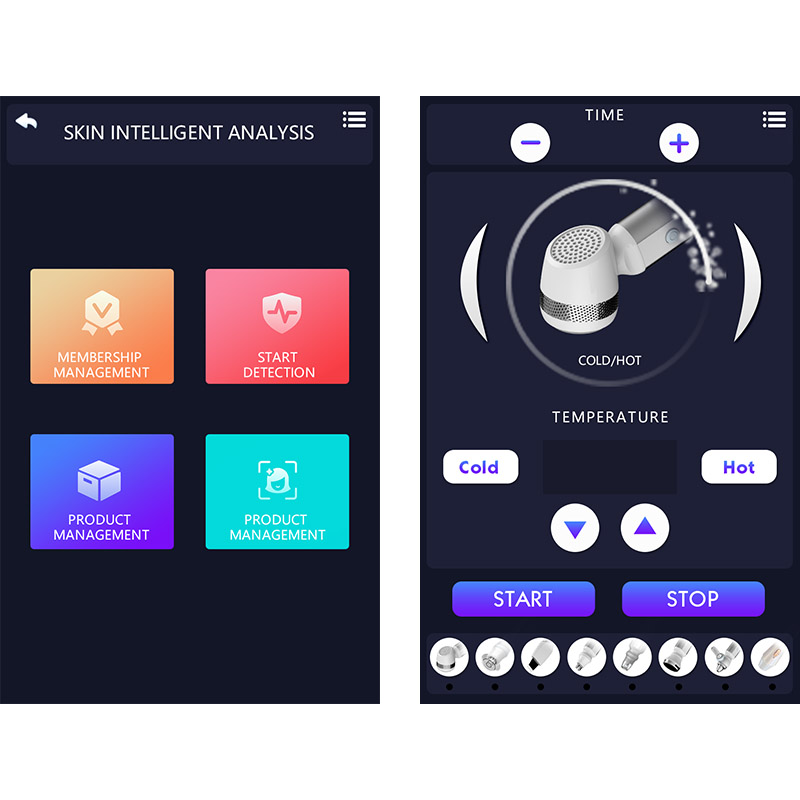

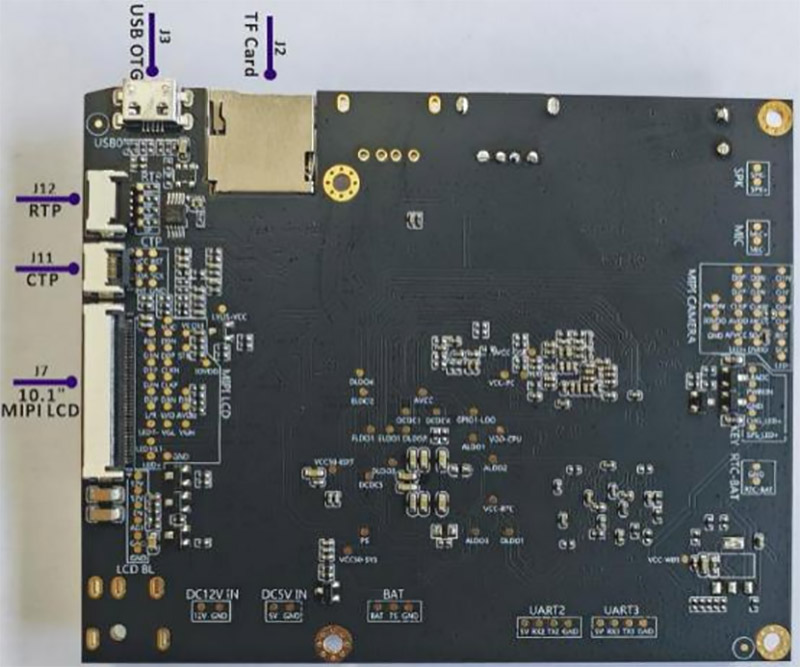

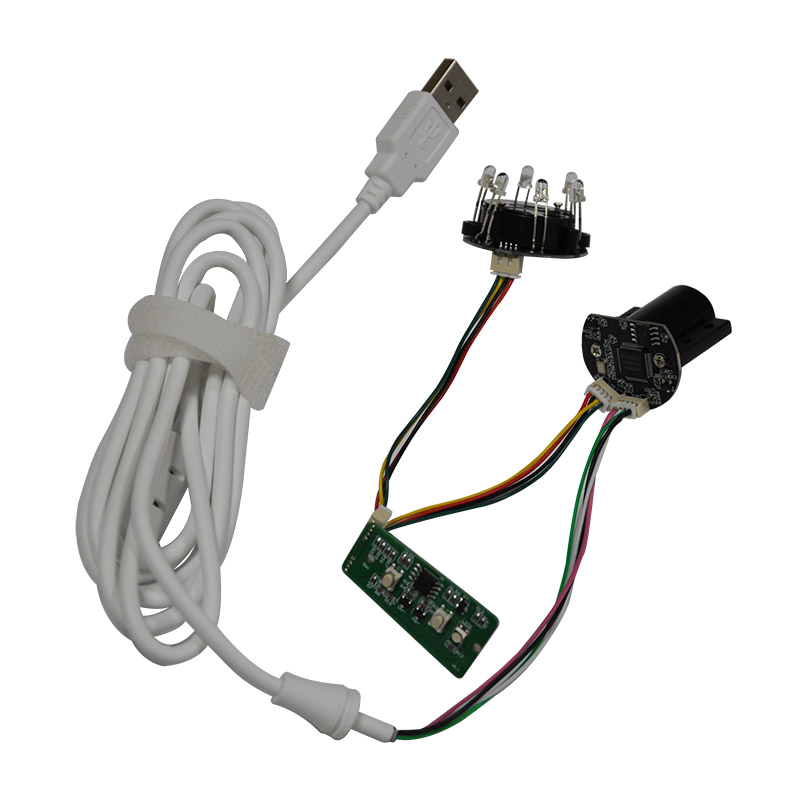

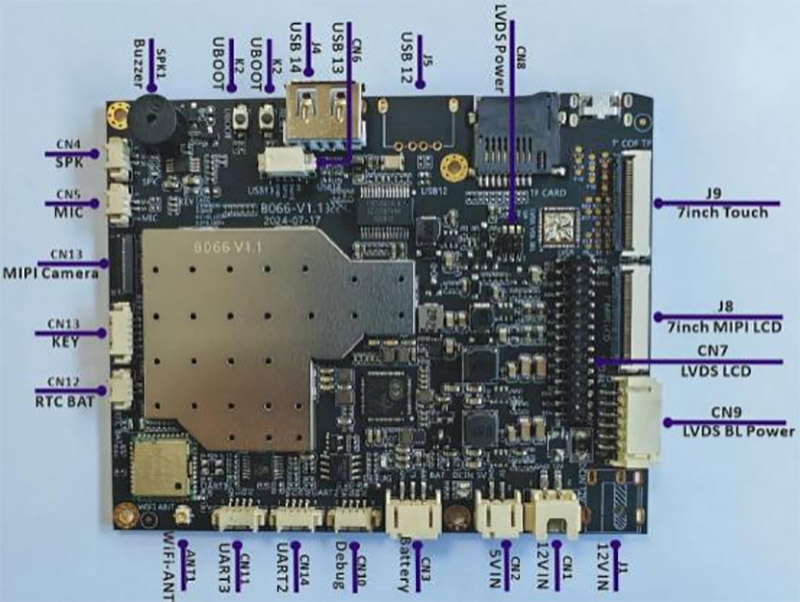

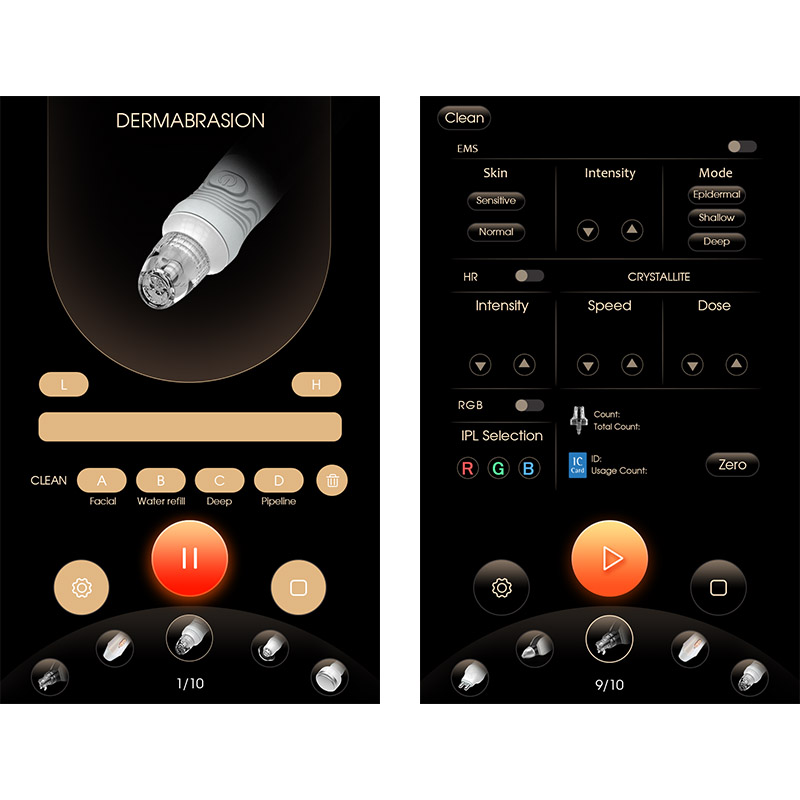

Product model: HT-7282A01 (Android motherboard+module+15.6-inch screen) Main control model: Allwinner A133 quad core processor Memory configuration: DDR 2GB Storage configuration: EMMC 32GB Screen size: 15.6 inches Resolution: 1920 * 1080/1080 * 1920 Touch type: capacitive touch Expansion interfaces: USB x2, TF card, speaker, microphone, TTL serial communication x2, buzzer Input voltage: 12V 2A Software: Provides custom industrial control interface configuration tool (can be controlled through serial port and control board protocol)+skin/scalp intelligent detection system Magnification: fixed focus 80X Photography: Built in Pixel: Hardware HD 2 million pixels Auxiliary light source: 3 white LED lights, 3 polarized LED lights, 6 UV purple LED lights Resolution: 640x480
|
