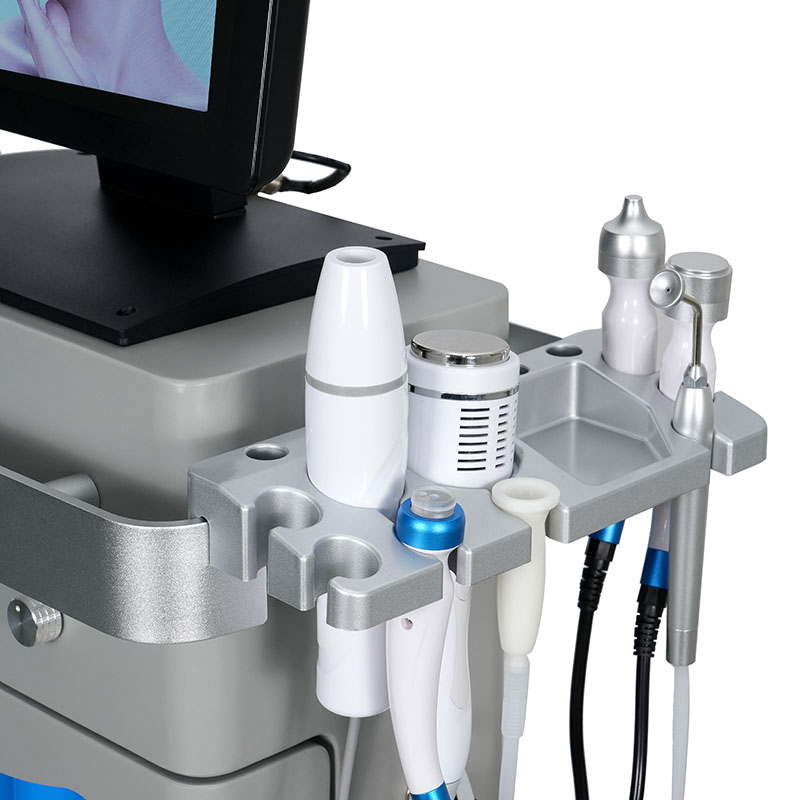

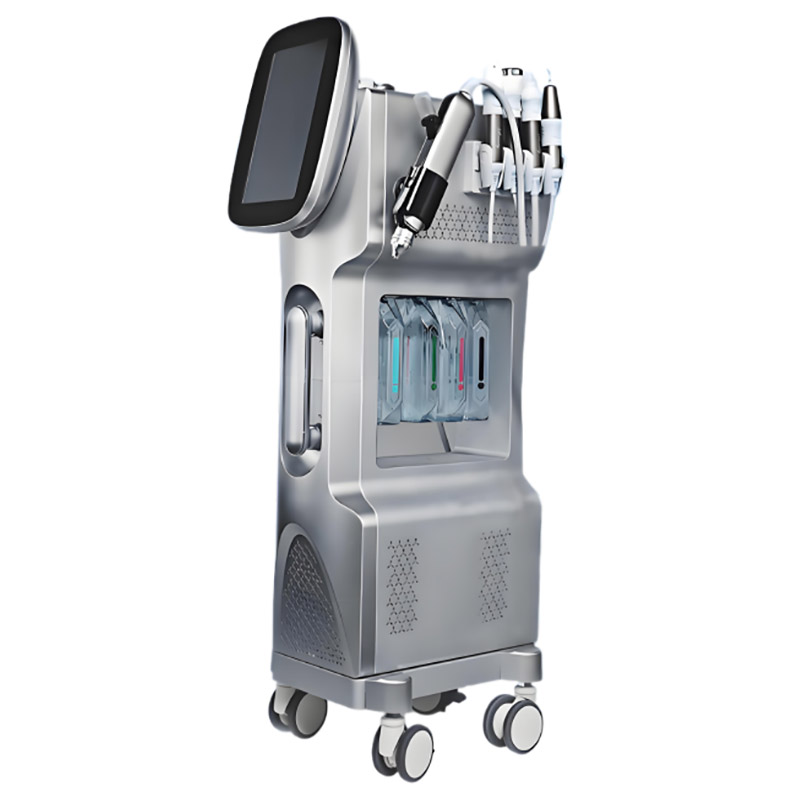

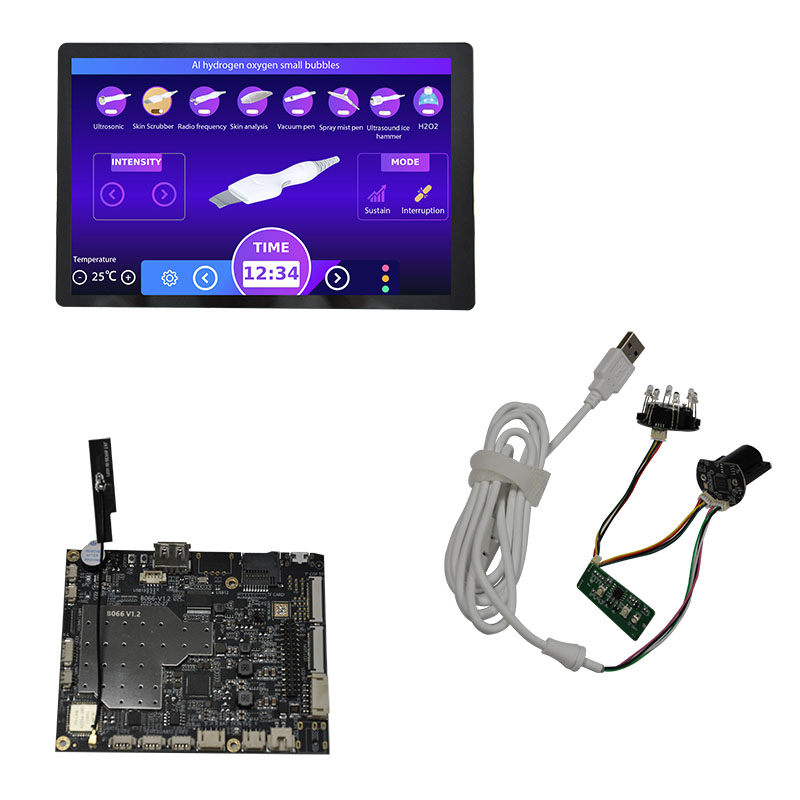

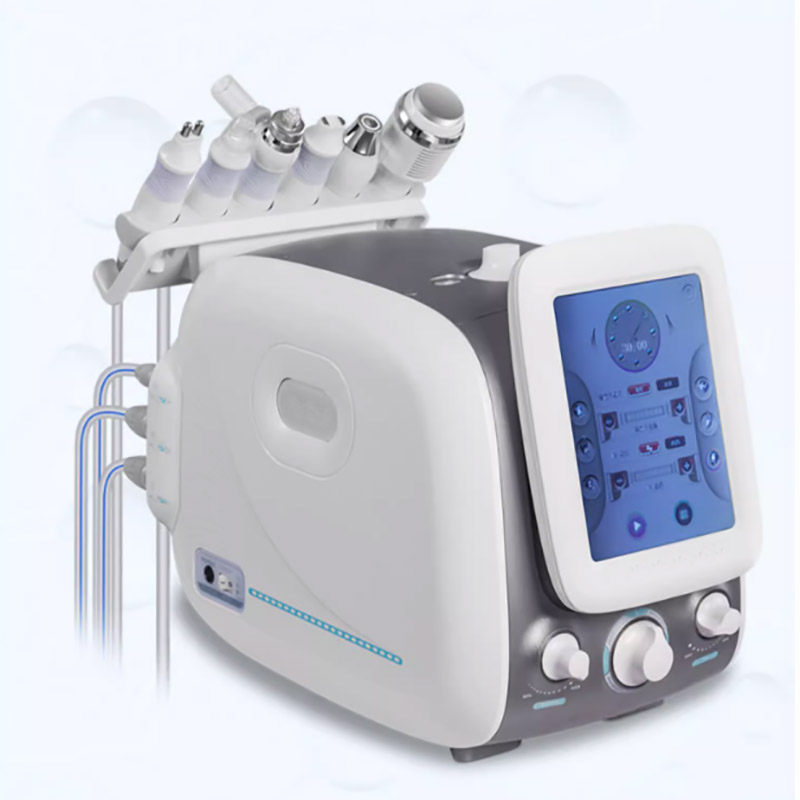

HT-7282A02 Android motherboard+module+10.1-inch LCDSmall bubble, skin comprehensive device, hair removal device system integrated skin and hair detection system solution development, providing Android motherboard, PCBA camera module, optional 7-inch LCD screen, 10.1-inch LCD screen, 12.1-inch LCD screen, 15.6-inch LCD screen and other complete software and hardware development.
Collect
产品编号 30
商品说明
商品参数

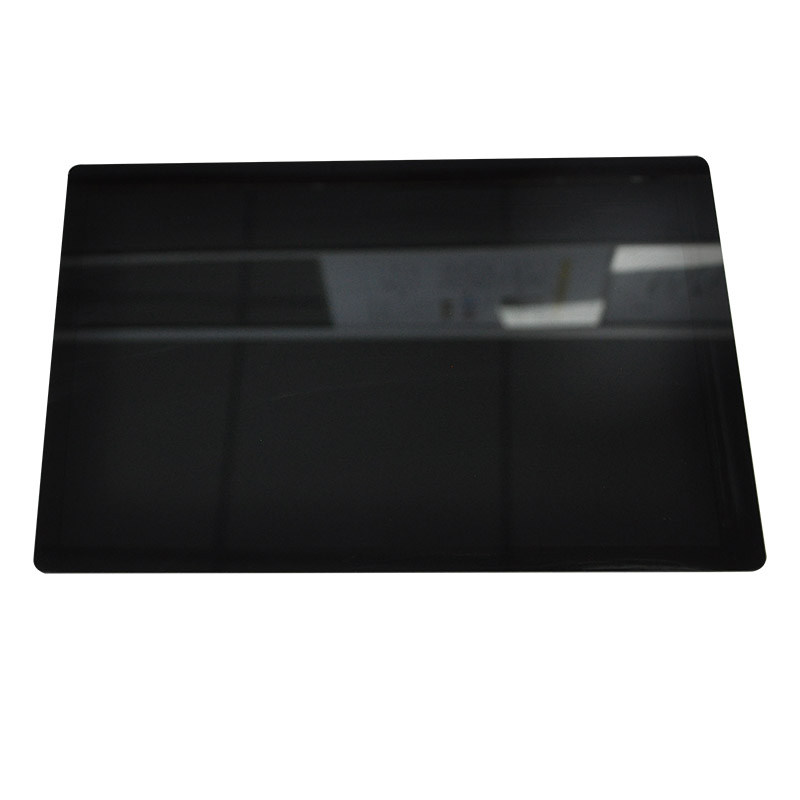

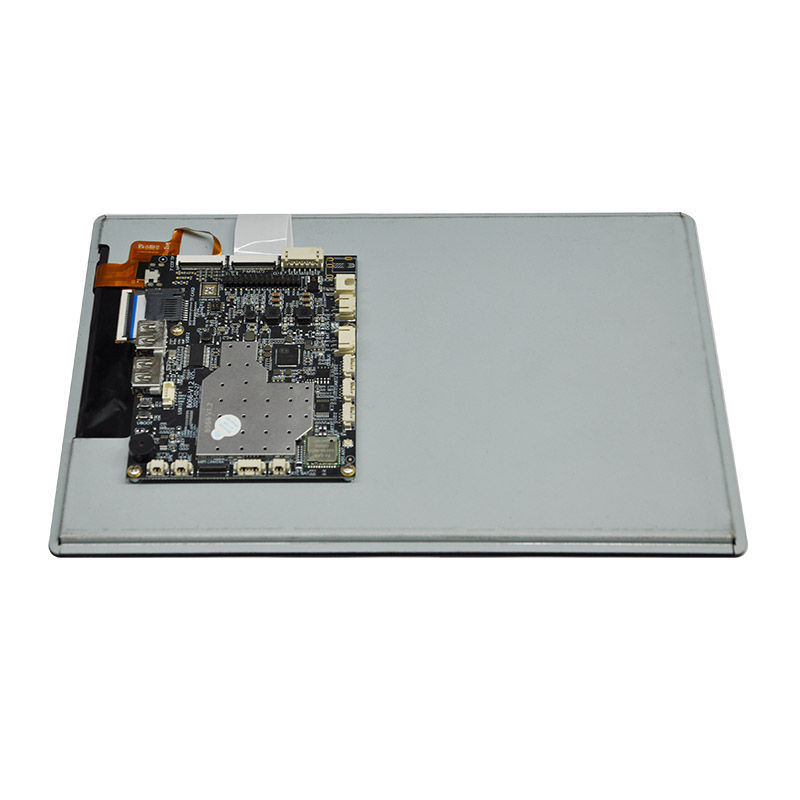

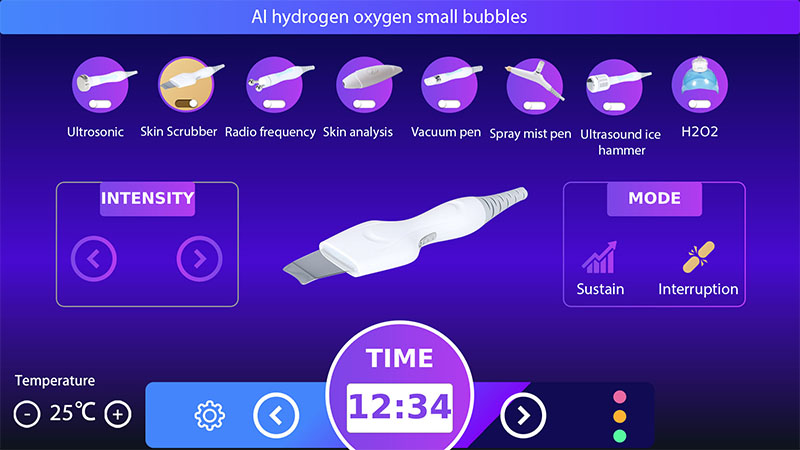

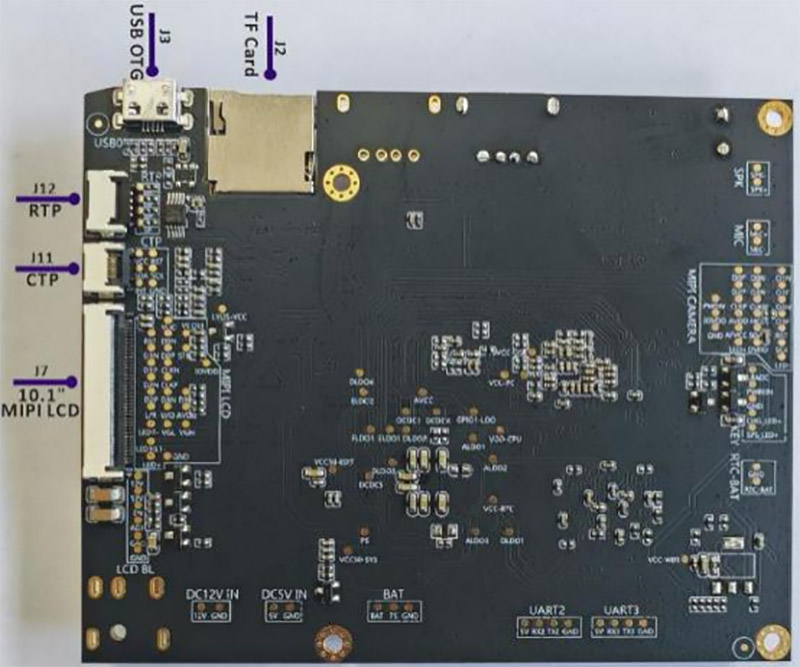

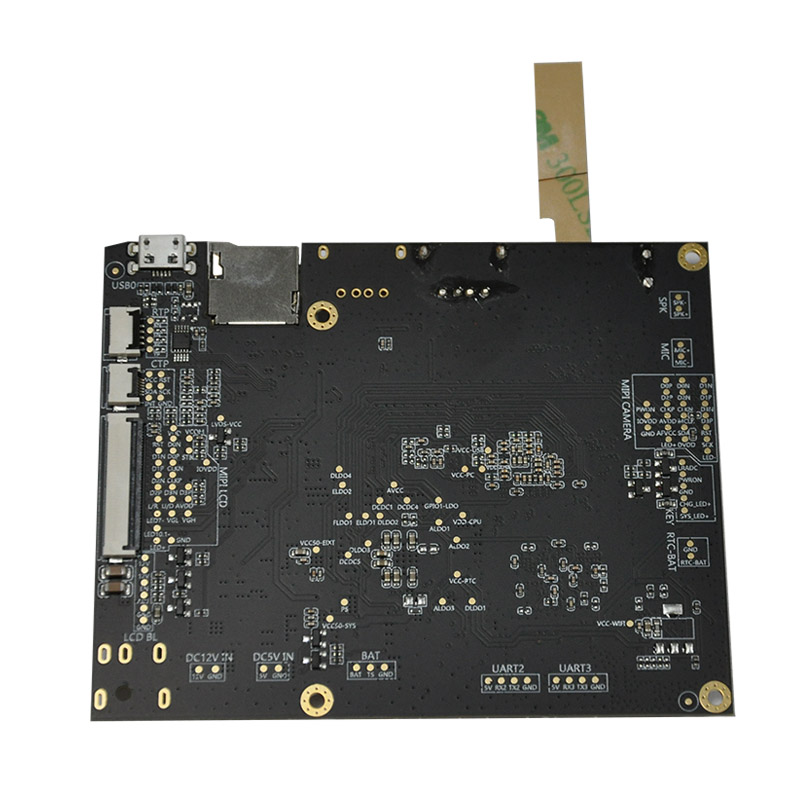

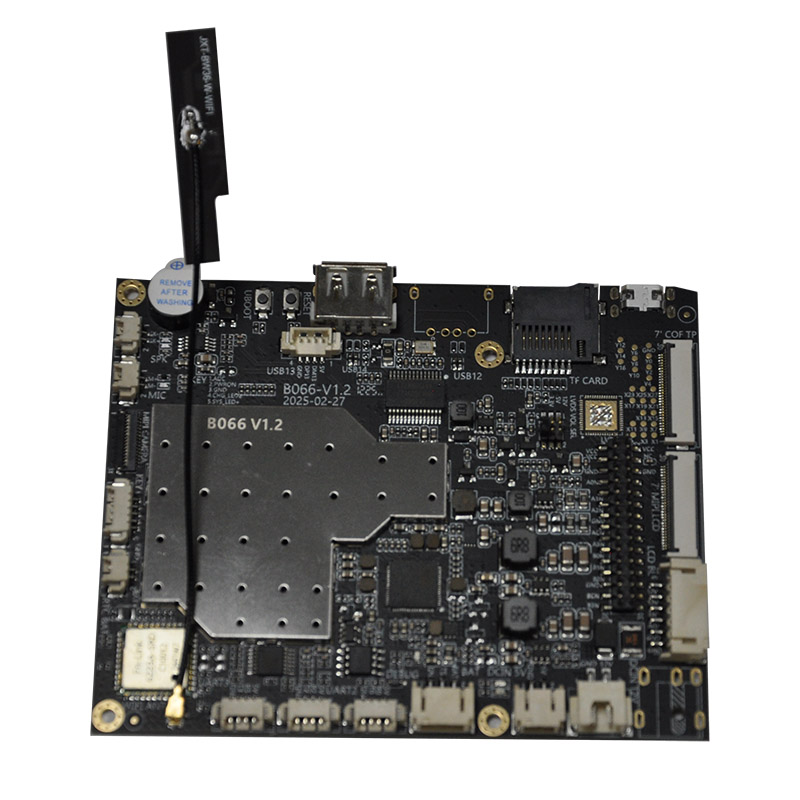

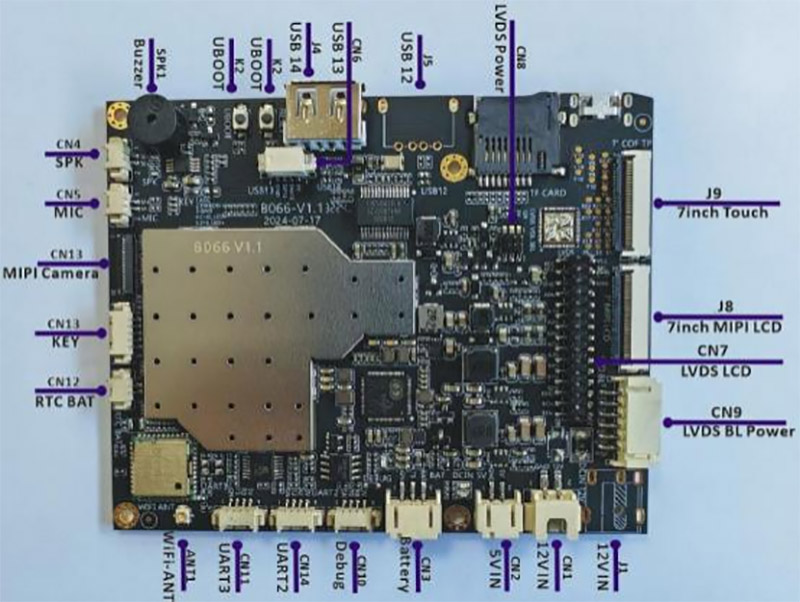

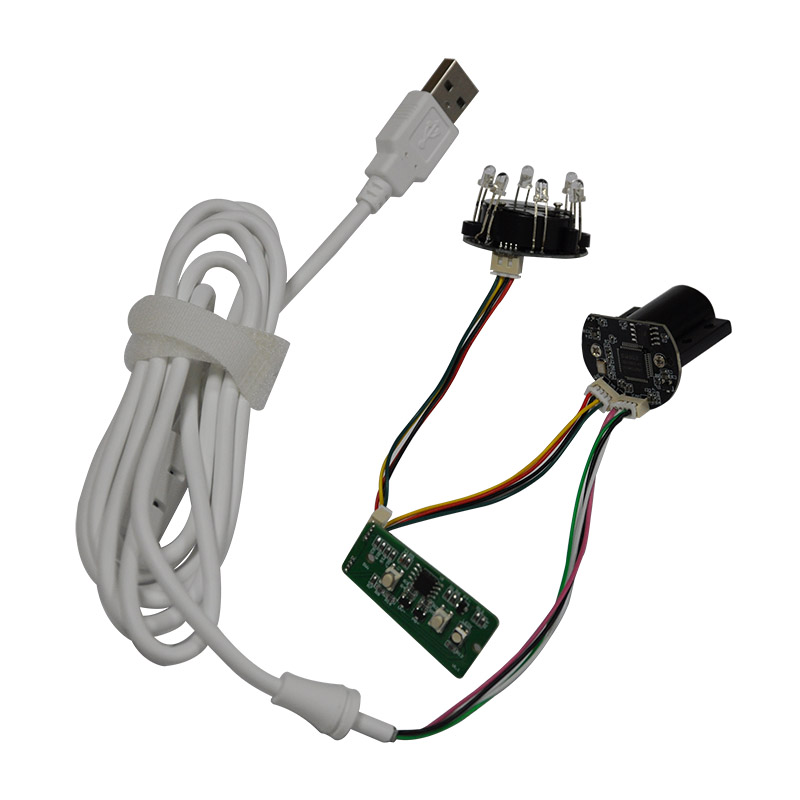

Product model: HT-7282A02 (Android motherboard+module+10.1-inch screen) Main control model: A133 quad core processor Memory configuration: 2GB Storage configuration: 16/32GB optional Screen size: 10.1 inches Screen resolution: 1280 * 800 (horizontal and vertical switching) Touch type: capacitive touch Network: Supports WiFi Expansion interfaces: USB x2, TF card, speaker, microphone, TTL serial communication x2, buzzer Input voltage: 12V 2A Software: Provides custom industrial control interface configuration tool (can be controlled through serial port and control board protocol)+skin/scalp intelligent detection system Magnification: fixed focus 80X Photography: Built in Pixel: Hardware HD 2 million pixels Auxiliary light source: 3 white LED lights, 3 polarized LED lights, 6 UV purple LED lights Resolution: 640x480
|
